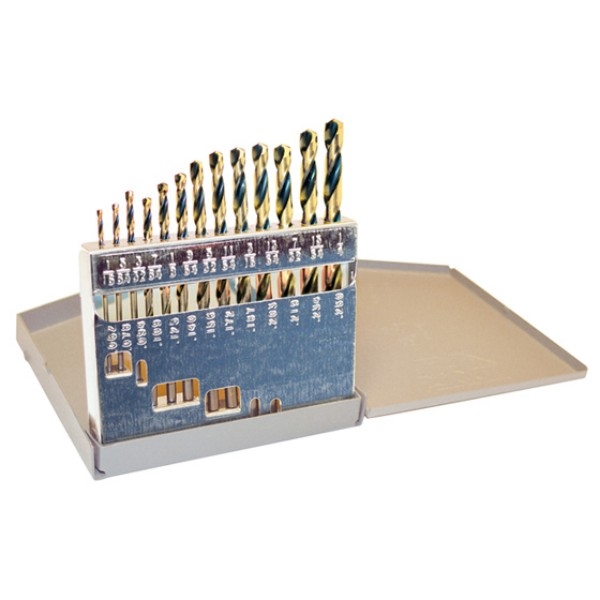

Alfa Tools Blitz Bits Black Oxide & Gold Finish Jobber Drill Set
Alfa Tools Blitz Bits Black Oxide & Gold Finish Jobber Drill Set



Click to view another Quantity

Quantity:

Qty:
Product Description:
  • Engineered for heavy duty work, Blitz Bits are high performance drills for production as well as tough maintenance applications
  • Made from a premium grade of M-7 molybdenum high speed steel, which has a special black and gold surface treatment to increase lubricity and reduce friction
  • The strong web construction provides greater strength and rigidity to drill in hard to drill materials like stainless steel and titanium alloys
  • The buttressed cutting edge, with an acute rake, makes the Blitz Bit cut cleanly and accurately with less effort
  • The extra clearance behind the side margin reduces friction, enabling balanced cutting action with closer hole tolerances, at higher speeds
  • Precision ground 135 split point is self-centering and reduces thrust
  • Designed for drilling the widest range of materials like mild steel, stainless steel, and non-ferrous materials
*Sizes 1/16 to 11/64 do not have flats on shank *

Quantity/Package___Sizes___Part #
13 Piece1/16" - 1/4" by 64ths BBML74294
15 Piece1/16" - 1/2" by 32ndsBBML74293
21 Piece1/16" - 3/8" by 64thsBBML74292
29 Piece1/16" - 1/2" by 64thsBBML74290

Item# Item Name Our Price Qty Add
AT-BBML74290 Alfa Tools BBML74290 Blitz Bits Black Oxide & Gold Finish Jobber Drill Set - 29 Piece
$103.27
AT-BBML74292 Alfa Tools BBML74292 Blitz Bits Black Oxide & Gold Finish Jobber Drill Set - 21 Piece
$51.58
AT-BBML74293 Alfa Tools BBML74293 Blitz Bits Black Oxide & Gold Finish Jobber Drill Set - 15 Piece
$57.67
AT-BBML74294- Alfa Tools BBML74294 Blitz Bits Black Oxide & Gold Finish Jobber Drill Set - 13 Piece
$25.92
Check the items you wish to purchase, then click


Technical Specs:
  • Size___Decimal
    Equivalent    		_-_Flute
    Length
    		_-_Overall
    Length
    1/16
    		.06257/81-7/8
    5/64.078112
    3/32.09381-1/42-1/4
    7/64.10941-1/22-5/8
    1/8.12501-5/82-3/4
    9/64.14061-3/42-7/8
    5/32.156223-1/8
    11/64.17192-1/83-1/4
    3/16.18752-5/16
    		3-1/2
    13/64.20312-7/16
    		3-5/8
    7/32
    		.21882-1/23-3/4
    15/64.23442-5/8
    		3-7/8
    1/4.25002-3/44
    17/64.26562-7/84-1/8
    9/32.28122-15/164-1/4
    19/64.29693-1/164-3/8
    5/16.31253-3/164-1/2
    21/64.32813-5/164-5/8
    11/32.34383-7/164-3/4
    23/64.35943-1/24-7/8
    3/8.37503-5/85
    25/64.39063-3/45-1/8
    13/32.40623-7/85-1/4
    27/64.42193-15/165-3/8
    7/16.43754-1/165-1/2
    29/64.45314-3/165-5/8
    15/32.46884-5/165-3/4
    31/64.48444-3/85-7/8
    1/2.50004-1/26
